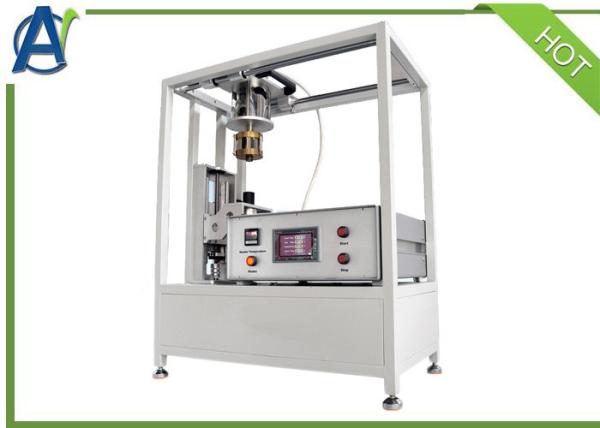

EN 702 and ISO 12127-1 Protective Clothing Contact Heat Transmission Tester

Brand Name : AI

Model Number : CHT

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Contact Heat Transmission Tester

Price : Negotiable

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100 sets each month

Delivery Time : 30 days

Packaging Details : Contact Heat Transmission Tester Packed in veneer case.

Reference standards : EN 702, ISO 12127-1

Application Field : Safety protection

Dimension : 600(D) X 250(mm) X 650(mm)

Weight : 55KG

Gas supply : Propane and compressed air

Power supply : 220V, 50Hz

Color : White

Warranty : 1 Year

Contact Now

Introduction:

Protective Clothing Contact Heat Transmission Tester is applicable to protective clothing (including hand protectors) or its constituent materials intended to protect against high contact temperature. The application of the standard is restricted to contact temperatures from 100℃ to 500℃.

Features:

Protective Clothing Contact Heat Transmission Tester is designed and manufactured according to EN 702 and ISO 12127-1 standards.
Protective Clothing Contact Heat Transmission Tester determines the threshold time of temperature rise of 10°C in the calorimeter.

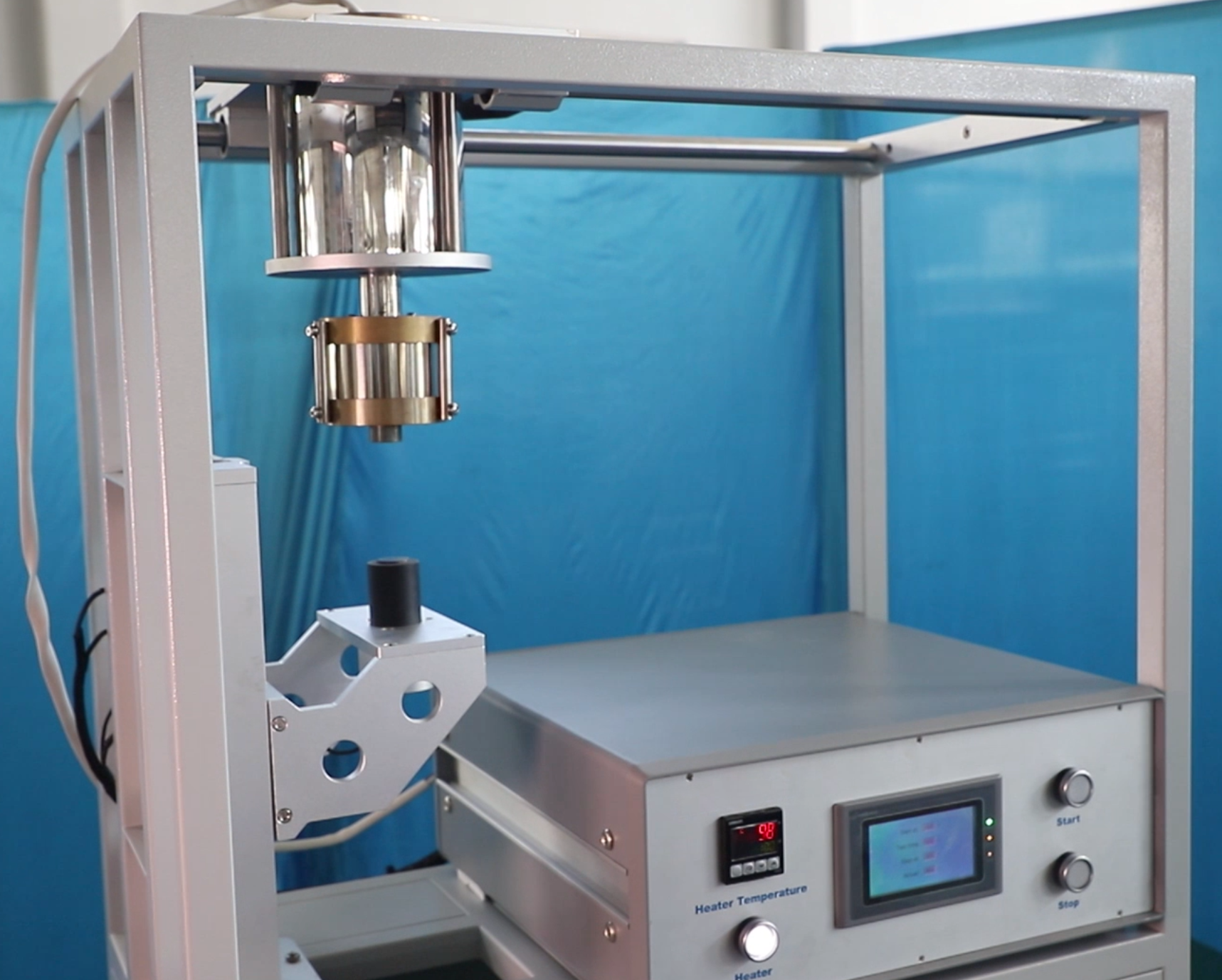

In the test a heating cylinder is heated to a defined temperature and the specimen is put on the calorimeter.
During the measuring the calorimeter is moved towards the heating cylinder with a defined skipping speed of 5 mm/s and after contact a load of 49N is applied.
The temperature of the heating cylinder is adjustable from room temperature up to 500 °C.

Specifications:

1	Application field	Safety protection
2	Reference standard	EN 702, ISO 12127-1
2	Dimension	600(D) X 250(mm) X 650(mm)
3	Weight	55kg
4	Power supply	230 volts Nominal 10 Amps
5	Ambient temperature	Operating 25±5℃
6	Gas supply	Propane and compressed air

EN 702 and ISO 12127-1 Protective Clothing Contact Heat Transmission Tester
