ASTM F2100 Surgical Masks Flammability Testing Equipment

Introduction
This flammability testing equipment is designed according to the latest edition of the national standard GB/T14645 design and manufacturing.It applies to textile fabric in under 45 ° combustion, determination of the damaged area and damage length determination of heat or melt number to provide exposure to the flame length. Combustion evaluation of refractory materials fire-resistant and can be based on compliance with the implementation of standards, measurement of sampleis installed at a45 degreeangle light and perfect combustion combustion characteristics.

45 degree flammability testing equipment is used for measuring burning time and passive smoke glow time, graphic placement sample received someradiation,and fixed heat generated in the Chamber.

Standards

• ASTM D 1230

• NFPA 702

• ASTM F 963
• ASTM F2100

•16 CFR PART 1610

Main Features:
1.Stainless steel cabinet, beautiful, corrosion-resistant, easy to clean;
2.Light structure, easy to move
3.Flame height regulated by imported needle valve to 16mm
4.The imported pressure gauge and pressure regulating valve can display the gas pressure
5.Heat resistant glass door is easy to observe the internal test state
6.Provide power switch to cut off the power supply
7.Timer automatic timing, resolution 0.1s; timing reminder function
8.Automatic timing of continuous burning time
9.Microswitch, automatically record the finish time of the test;
10.PLC and touch screen control system; more automatic.
11.Automatic calculation and storage of test result.
12.Equipped with standard custom brush; stainless steel material; brush pressure on the sample is 150g;
13.Customized stainless steel flame height is 16mm;
14.Printer to print test report freely (option)

Specification

Masks Flammability Testing Equipment

Flammability Testing

ASTM F2100

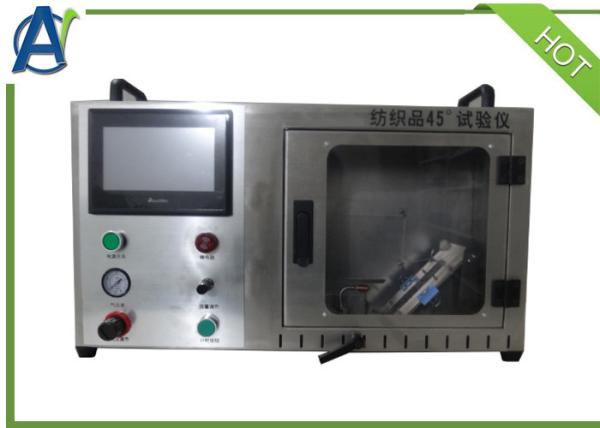

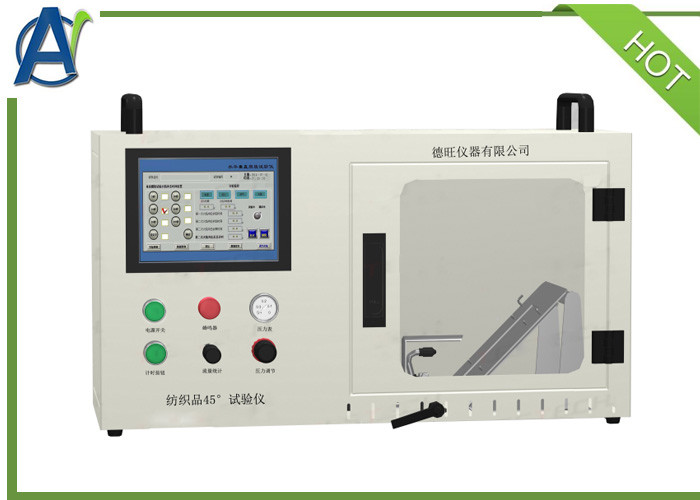

ASTM F2100 Surgical Masks Flammability Testing Equipment Under 45 ° Combustion Images
